Description
NAME: ARTICULATED PIN KIT
PN: 30890900376_30890100020
FIT FOR LONGKING WHEEL LOADER CDM833 CDM835E
CONTACT US:
Email: jeek2013@hotmail.com
Wechat/WhatsApp : +86 137 929 620 79
—– —– —– —– —– —–

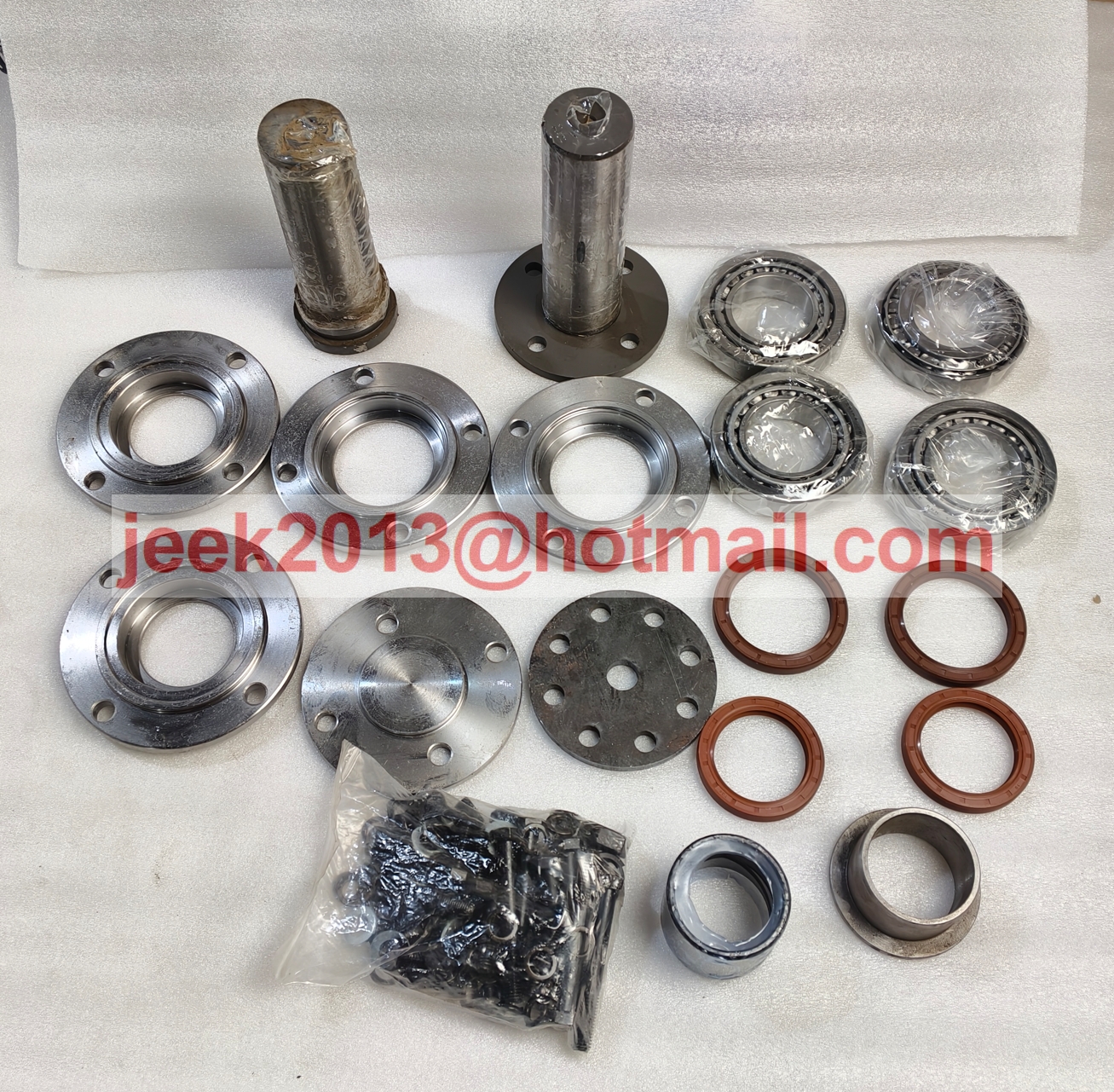

CDM833 CDM835E ARTICULATED PIN KIT FOR LONGKING WHEEL LOADER 30890900376_30890100020

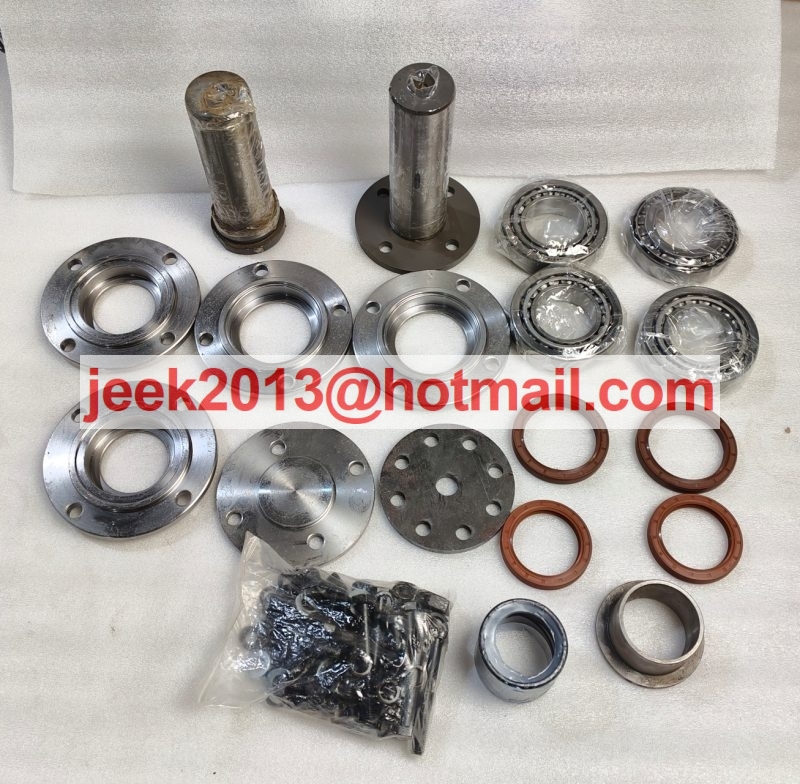

CDM833 CDM835E ARTICULATED PIN KIT FOR LONGKING WHEEL LOADER 30890900376_30890100020

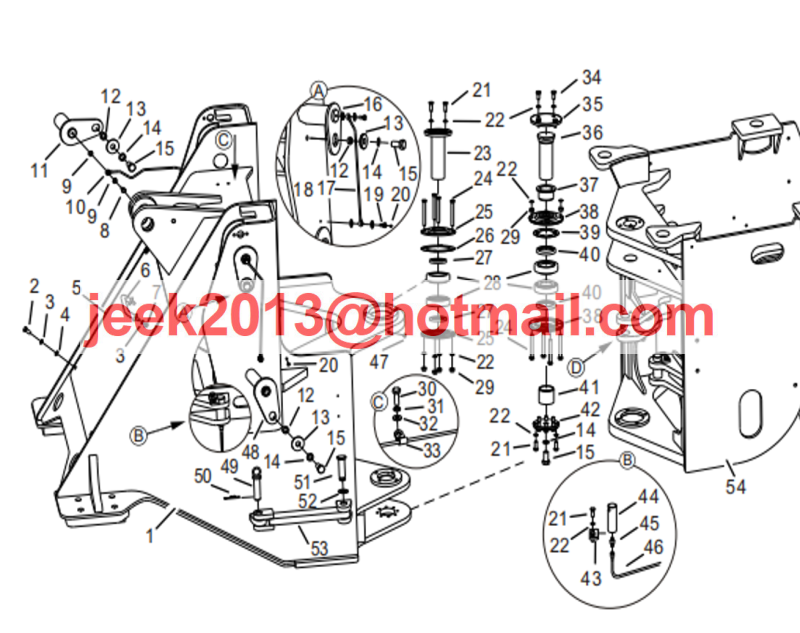

23 30890900376 上铰接销焊合 Articulated upper pin welding
24 51203112614 螺栓M12×100 Bolt
25 30810102340 轴承盖 Bearing cover 2
26 60980000171 调整垫 Adjusting pad 1
27 56161012301 密封圈 Seal ring
28 52324001001 轴承 Bearing
29 51307001119 螺母M12 Nut M12 8 8 GB/T6170
30 51204091014 螺栓M8×20 Bolt M8×20 8.8 2
31 51401090107 垫圈8 Washer 8 5 GB/T93
32 51421090115 垫圈8 Washer 8 5 GB/T97.1
34 51204111114 螺栓M12×25 Bolt M12×25 8.8 4 GB/T5783
35 30810102335 盖 Cover 1
36 30890100020 下铰接销 Lower articulated pin 1
37 30810102336 轴套 Shaft sleeve 1
38 30810102337 轴承盖 Bearing cover 2
39 60980000170 调整垫 Adjusting pad 1
40 56161012201 密封圈 SEAL RING
41 30810102339 轴套 Shaft sleeve 1
42 30810102338 端盖 End cover 1
43 30810100792 卡板 Card board 4
44 60905000041 转向销 Steering pin 4
